Aerosol Fire Extinguishing Device User Manual

I. Overview
The small aerosol fire extinguishing system is a new environmentally friendly fire protection product with world-leading technology. It is a new high-tech green firefighting product further developed on the basis of the third-generation S-type aerosol.

1、Product Features

(1) Eco-friendly Product: Excellent cleanliness, with an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 0.
(2) Stainless Steel and Aluminum Alloy Cylinders: Corrosion-resistant, stored at normal pressure, leak-proof, and low maintenance.
(3) Certification: Passed fire extinguishing tests and certification by the National Fixed Firefighting Systems and Fire-resistant Components Quality Supervision and Inspection Center.
(4) No Residue After Extinguishing: Releases aerosol particles smaller than 2 microns after activation, which disperse easily in the air. The particulate matter released is even less than the dust that naturally settles in a closed computer room over a month.
(5) Compact Size: Reduces the size and weight by up to 90% compared to other fire extinguishing systems, not occupying space in the protected area.
(6) Easy Installation: No need for high-pressure containers or complex piping networks, saving space and installation costs.
(7) Convenient Design with Wide Applicability.
(8) Long Agent Shelf Life: The agent lasts for up to 10 years, which is better than other types of fire extinguishing agents.

2、The small aerosol series fire extinguishing systems are suitable for fighting the following types of fires:

1. Construction Industry: High-rise buildings, industrial buildings' transformer and distribution rooms, libraries, archives, underground storage rooms, safes;
2. Telecommunications Industry: Telecom rooms, computer rooms, communication base stations, relay stations, data processing rooms in distribution cabinets, remote control rooms, precision equipment distribution cabinets;
3. Metallurgical Industry: Rolling mill equipment rooms, electronic instrument control rooms, electrical basements, cable tunnels, cable trenches, transformer rooms;
4. Petrochemical Industry: Flammable liquid storage areas, transformer (distribution) rooms, generator rooms, cable tunnels, cable wells, distribution cabinets, switch cabinets;
5. Transportation Industry: Train engine rooms, railway signal substations, station signal buildings, highway signal stations, vehicle engine rooms, turbine rooms, ship engine rooms;
6. Other Industries: CNC and other high-value machinery, high-value mobile equipment.

The small aerosol series fire extinguishing system is not suitable for the following places and types of fires:

Explosive hazard areas;
Oxidizing agents such as nitrated fibers;
Reactive metals such as potassium, sodium, etc.

Small Aerosol Series Fire Extinguishing System Model Numbering and Types

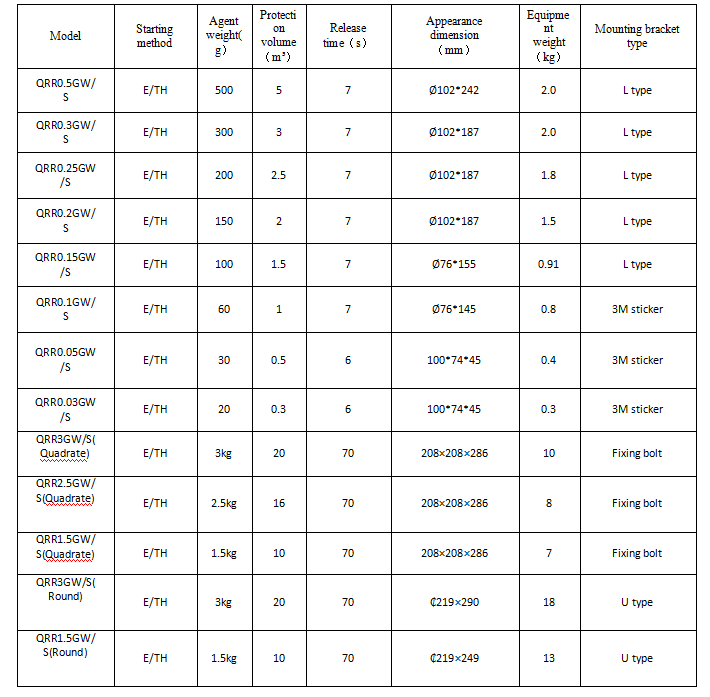

(1) Basic Model:

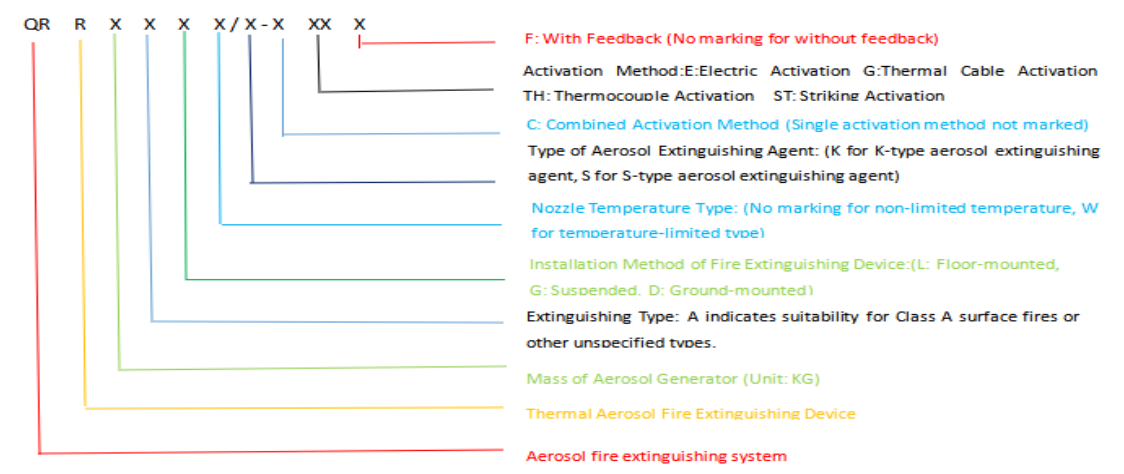

（2）Numbering method:

For example: QRRO.25GW/S-E-WK represents a 250g suspended temperature-limited model with single electric activation, without feedback signal.

(3) Operating Environment Requirements

Temperature Range: -50℃ to +90℃
Relative Humidity: ≤95%RH

Ⅱ、 Working Principle

E (Electric Activation) Model Operating Principle: The fire alarm controller or gas fire extinguishing control detects the fire signal. When a fire is detected, it outputs a start signal to the small aerosol series fire extinguishing device. After receiving the start signal, the fire extinguishing agent inside the device is activated, rapidly generating nano-sized aerosol fire extinguishing agents, which are then sprayed out for quick fire suppression.

2） TH (Thermocouple Activation) Model Operating Principle: When the ambient temperature reaches the activation temperature of the thermosensitive wire in the small aerosol series fire extinguishing device or when the thermosensitive wire comes into contact with open flames, it is activated to start the fire extinguishing device. The device rapidly generates nano-sized aerosol fire extinguishing agents and sprays them out for quick fire suppression.

3） ST (Striking Activation) Model Operating Principle: When the ambient temperature reaches the activation temperature of the temperature-sensing element in the small aerosol series fire extinguishing device, the element is activated to start the fire extinguishing device. The device rapidly generates nano-sized aerosol fire extinguishing agents and sprays them out for quick fire suppression.

4） Wiring Instructions: The red and blue wires are the activation wires, and the black wire is for feedback.

Mechanical Temperature-Sensitive Magnetic Generator Activation Model Operating Principle: When the small aerosol series fire extinguishing device reaches the activation temperature, the fusible alloy melts and falls, generating an electrical pulse start signal to activate the fire extinguishing device. At the same time, it can transmit the activation signal to the monitoring host, outputting the start feedback signal. Once activated, the device rapidly generates nano-sized aerosol fire extinguishing agents and sprays them out for quick fire suppression.

Wiring Instructions:

The first type of mechanical temperature-sensitive magnetic generator activation element base has 4 terminals in the center. The terminals marked with “+” and “-” are for connecting the activation power supply wires. The two middle terminals are for the activation feedback output. The feedback device remains open at normal temperature, with a resistance greater than 100MΩ.
The second type of mechanical temperature-sensitive magnetic generator activation element base has 4 terminals in two colors. The blue terminal is for connecting the activation power supply wires, and the green terminal is for the activation feedback output. The feedback device remains open at normal temperature, with a resistance greater than 100MΩ.

III. Technical Parameters

Basic Parameters

Fire Extinguishing Time: ≤30s
Nozzle Temperature: ≤200℃ (at 5mm from the nozzle)
Surface Temperature of the Housing: ≤200℃
Fire Extinguishing Efficiency: ≥100g/m³
Feedback Signal Method: Passive Normally Open Contact
Safe Distance from Nozzle to People: 1.5m
Safe Distance from Nozzle to Fire Object: 0.3m
Applicable Fire Types: Class A, B, C, E

E Model (Electric Activation) Start Mode Parameters

Start Voltage: DC3-24V / AC3-220V
Minimum Start Current: ≥250mA / 5ms
Maximum Safe Current: ≤150mA / 5min
Connection Method for Multiple Units: Series
Service Life: 10 years

Mechanical Temperature-Sensitive Magnetic Generator Activation Start Mode Parameters

Output Current: ≥1.2A
Operating Ambient Temperature: -40℃ to +90℃
Static Action Temperature: 90℃ ±5℃

IV. Unboxing Inspection

The unboxing inspection should be carried out according to the "Packing List" to check if the accompanying documentation and accessories are complete. If there are any issues, please contact the supplier.
Check whether the device has a "Product Certificate of Conformity." If this certificate is missing, please contact the distributor as soon as possible and do not use the device without it.

V. Installation and Commissioning

Installation Requirements for Small Aerosol Series Fire Extinguishing Devices
(1) The installation of the product is not affected by its height or position.
(2) No other objects should cover the product.
(3) The product should not be installed near air intake or exhaust vents, doors, windows, or other exits.
(4) The product should not be installed in areas prone to rain, water splashing, or flooding.

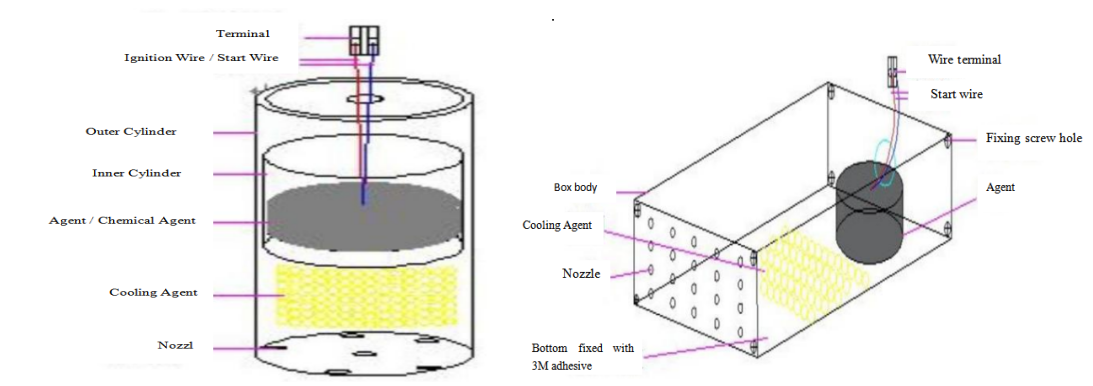

2、Product Structure Diagram

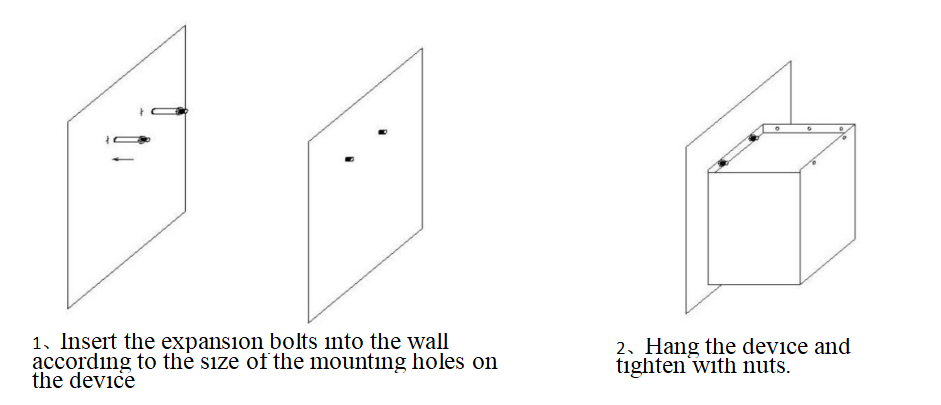

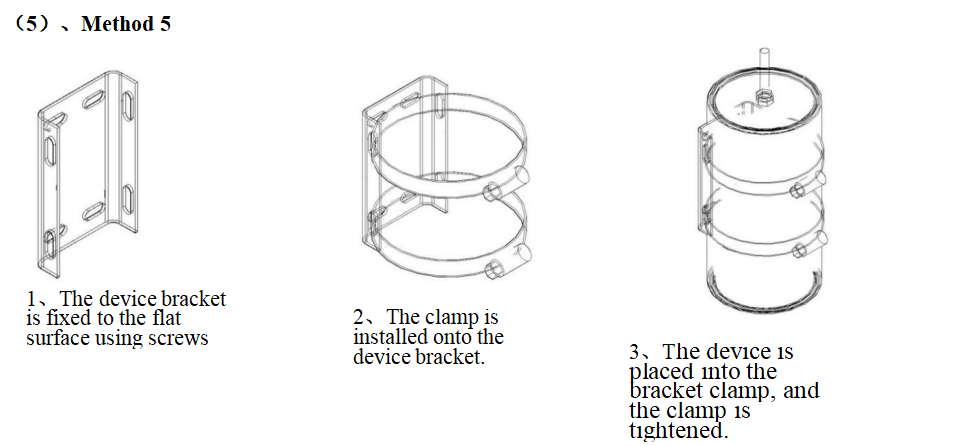

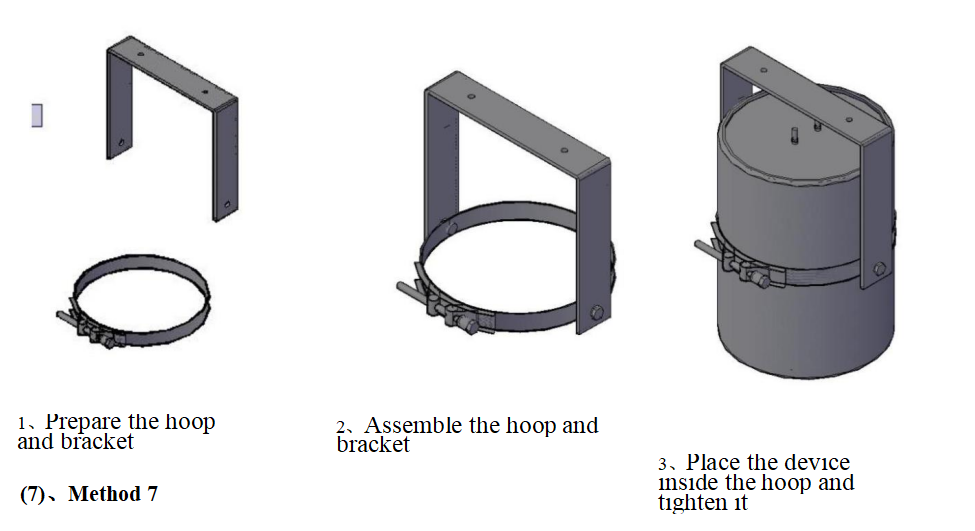

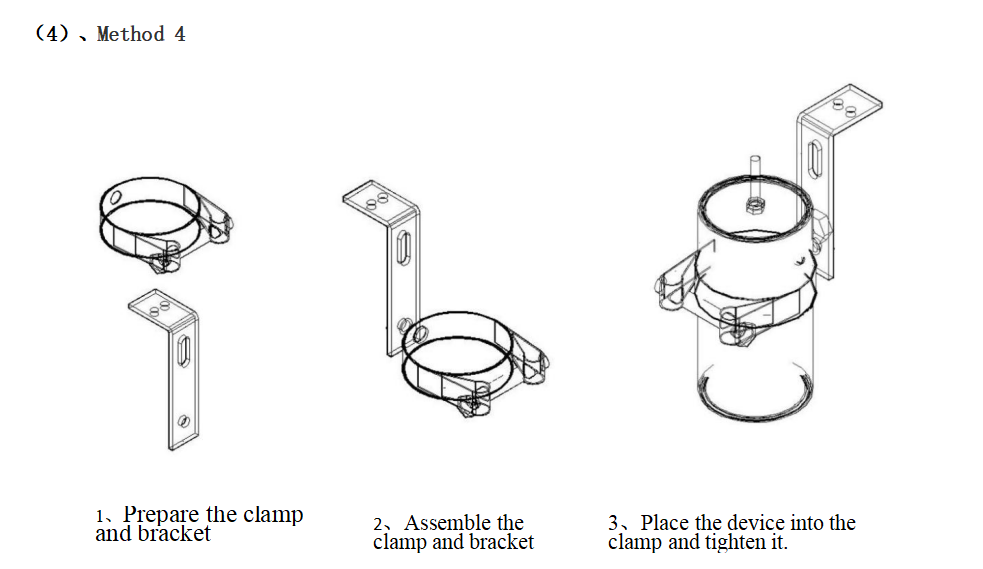

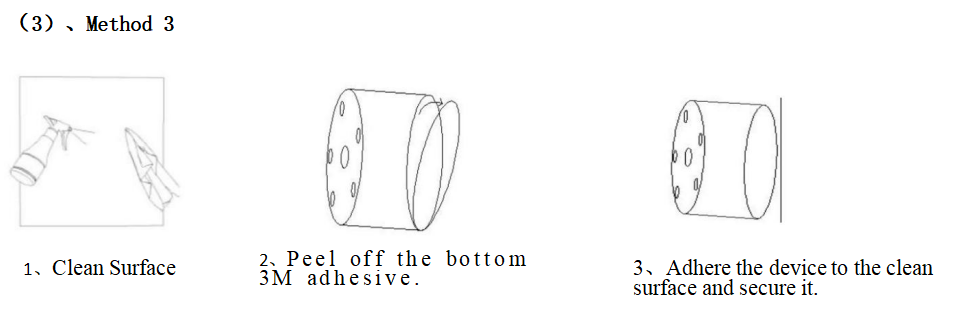

3、Installation Diagram：

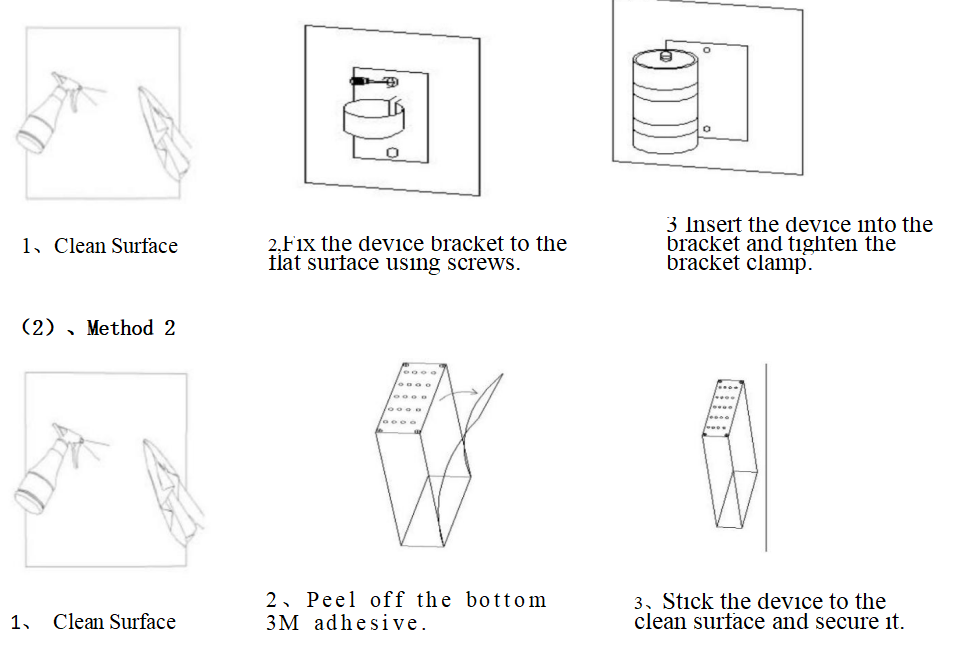

（1）、Method 1

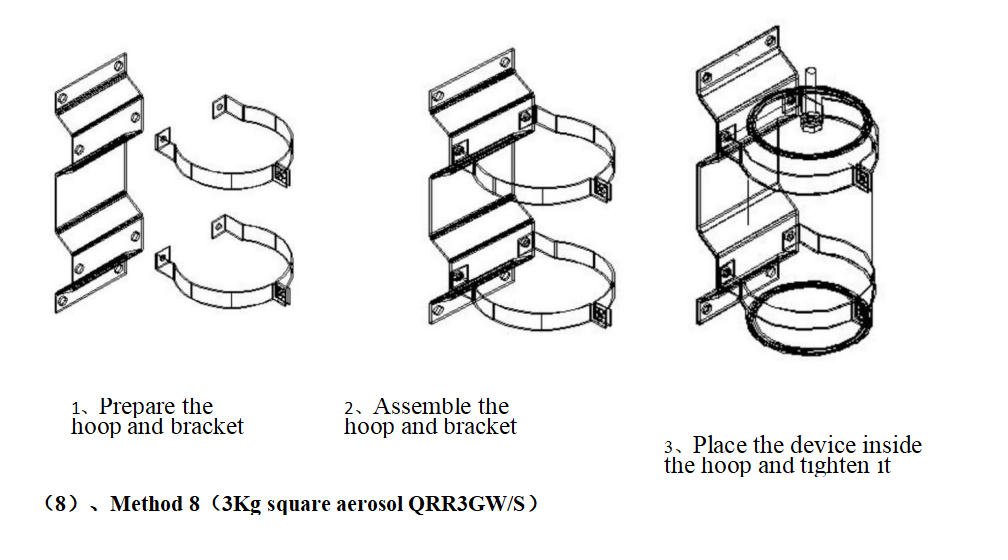

（6）、Method 6（3Kg Round Aerosol QRR3GW/S）

Ⅵ 、Usage and Operation Precautions

· Before installing the small aerosol series fire extinguishing device, carefully read the user manual. If there are any questions, please promptly consult our technical staff .

· The installation and commissioning of the small aerosol series fire extinguishing device must be carried out by professionally trained personnel.

· The small aerosol series fire extinguishing device should not be moved casually after installation.

· In case of fire, personnel on-site must evacuate immediately, ensuring that doors and windows are closed as much as possible during evacuation.

· After the expiration date, the user unit should contact the supplier for replacement and retrieval.

· After discharge, if the device needs to be removed shortly, wear heat-resistant gloves to avoid burns.

· The small aerosol series fire extinguishing device should not be disassembled during or after its service life to prevent accidents.

· The sealing membrane inside the nozzle should not be punctured under any circumstances, as it will affect the product's service life and the customer will be responsible. The company will not be liable.

VII. Transportation and Storage

During transportation, protect the product from rain, moisture, and handle it with care.
Storage should be in a well-ventilated, dry warehouse.

VIII. After-Sales Service

Our company will provide warranty services and corresponding technical support for the products in accordance with the national regulations on fire protection products.

IX. Contact Information

Factory Address: No. 169, Yunni Road, Xinxing Industrial Park, Yushui District, Xinyu City, Jiangxi Province
Phone: 0086 180 7904 8119

Email:rosehuang@cnwkkj.com
